ICP-NS Enhanced Performance Anti-Marking Films
ICP-NS " Enhanced" Anti-Marking Film
ICP-NS Product Characteristics
- Transparent green colored Anti-Marking Film
- Double layer coating formula to protect the silicon glass beads
- The silicon coated glass beads are uniformly coated and sealed to the surface of the film base in a dense matrix.
-
Two (2) separate layers of protection:
- 1st layers uses an ink and oil resistant adhesive coating
- 2nd layer is a silicon top coating
-
The silicone top coat allows:
- Reduction of ink accumulation
- Reduces the amount of time required for cleaning
- Reduces frequency required to remove ink accumulation
Backing: ICP-NS Anti-Marking Film is available without a pressure sensitive adhesive backing*
Life Expectancy: In most applications, 2 to 4 months between replacement

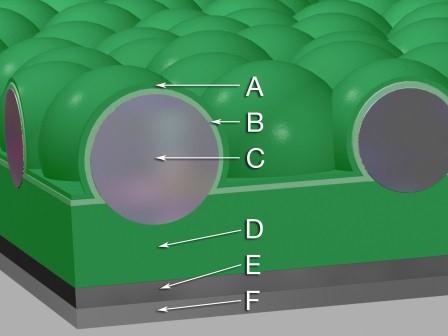

A – Silicon Coating
B – Ink & Oil Resistant Adhesive Coating
C – Glass Bead
D – Film Base
E – Adhesive (Optional)
F – Protective Film (Adhesive Only)
B – Ink & Oil Resistant Adhesive Coating
C – Glass Bead
D – Film Base
E – Adhesive (Optional)
F – Protective Film (Adhesive Only)
ICP-NS Anti-Marking Film Availability
Product | Description | Color | Bead Size | Thickness |
---|---|---|---|---|
ICP-NS Film - Type S | Enhanced Film / Non Adhesive | Green | Small 50 Microns | .007” |
ICP-NS Film - Type M | Enhanced Film / Non Adhesive | Green | Medium 100 Microns | .009” |
ICP-NS Film - Type L | Enhanced Film / Non Adhesive | Green | Large 200 Microns | .012” |
ICP-NS Film - Type S-AS | Anti-Static Film / Non Adhesive | Green | Small 50 Microns | .007” |
ICP-NS Film - Type M-AS | Anti-Static Film / Non Adhesive | Green | Medium 100 Microns | .009" |
ICP-NS Film - Type L-AS | Anti-Static Film / Non Adhesive | Green | Large 200 Microns | .012" |
All our materials can be supplied in individual cut sheets and custom size rolls, contact us for more information and pricing.
*Pressure Sensitive Backing can be applied, minimum order required
