Green Frog ICP Anti-Marking Jackets
The Green Frog™ ICP Anti-Marking Jackets utilizes the Triple Silicon Coated High Performance ICP-S material and are specially designed to adapt to most all Heidelberg and other press models. They adapt to specific cylinder positions without the need for additional packing or expensive press alterations. The jackets are designed to install quickly and easily onto the transfer and delivery cylinder positions utilizing the OEM clamping systems. The jackets are pre-packed using a soft, heat and solvent resistant packing material that insures proper support of the printed substrate during the transfer process. We also use precision fabricated metal parts, using tempered and stainless steel to insure there are no fitting issues.
Bar to Rod Design Heidelberg GTO 46/52 – MO 65 |
Bar to Bar Design Heidelberg SM / SX 52 |
Bar to Slot Design Heidelberg SM / SX 74 |
Rod to Rod Design Heidelberg SM 72 |
Rod to Pin Design Heidelberg SM 102 |
Rod to Rod Design Heidelberg SM 102 |

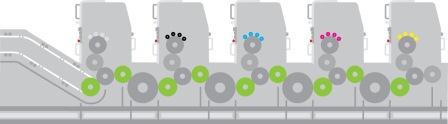

The illustration below shows a typical Heidelberg press configuration.
The cylinders shown in Green are typically where the Green Frog ICP Anti-Marking Transfer Jackets are installed.
Hamada, Heidelberg, Mitsubishi and Ryobi are Trademarks of their respective companies
Green Frog Jackets are available for the following Press Models
Press Type | Model Type | Position |
---|---|---|
Hamada | 234 | Delivery |
Hamada | 452 | Delivery |
Heidelberg | QM 46 | Delivery |
Heidelberg | GTO 46 | Transfer/Delivery |
Heidelberg | GTO 52 | Transfer/Delivery |
Heidelberg | SM 52 | Transfer/Delivery |
Heidelberg | SX 52 | Transfer (U1) |
Heidelberg | MO 65/66 | Transfer/Delivery |
Heidelberg | SM 72 | Transfer/Delivery |
Heidelberg | SM 74 | Transfer/Delivery |
Heidelberg | SX 74 | AVAILABLE SOON |
Heidelberg | SM 102 | Transfer/Delivery |
Mitsubishi | D300R | Reversing |
Ryobi | 3302 | Delivery |
Ryobi | 3304 | Delivery |
Contact us for other models not shown
